Innovative wood biomass heating solution with the option of SUBSIDIES
Established wood log boiler with subsidy in Slovenia, Austria and Germany
SELTRON UKP SMART has all the necessary documentation in place to obtain grant funding through the Slovenian, Austrian and German EcoFunds.
High efficiencies
The SELTRON UKP SMART log gasifier boiler heating solution delivers outstanding efficiency and economy in wood biomass heating. With efficiencies of up to 92 %, this boiler is equipped with a Lambdo probe for continuous combustion monitoring, ensuring maximum efficiency and minimum emissions.
Remote management
The UKP SMART boiler can be connected to the SeltronHome platform, which allows users to receive notifications about the boiler's operation and enables remote support for technicians to diagnose any problems. This makes heating with the UKP SMART boiler really smart and practical.

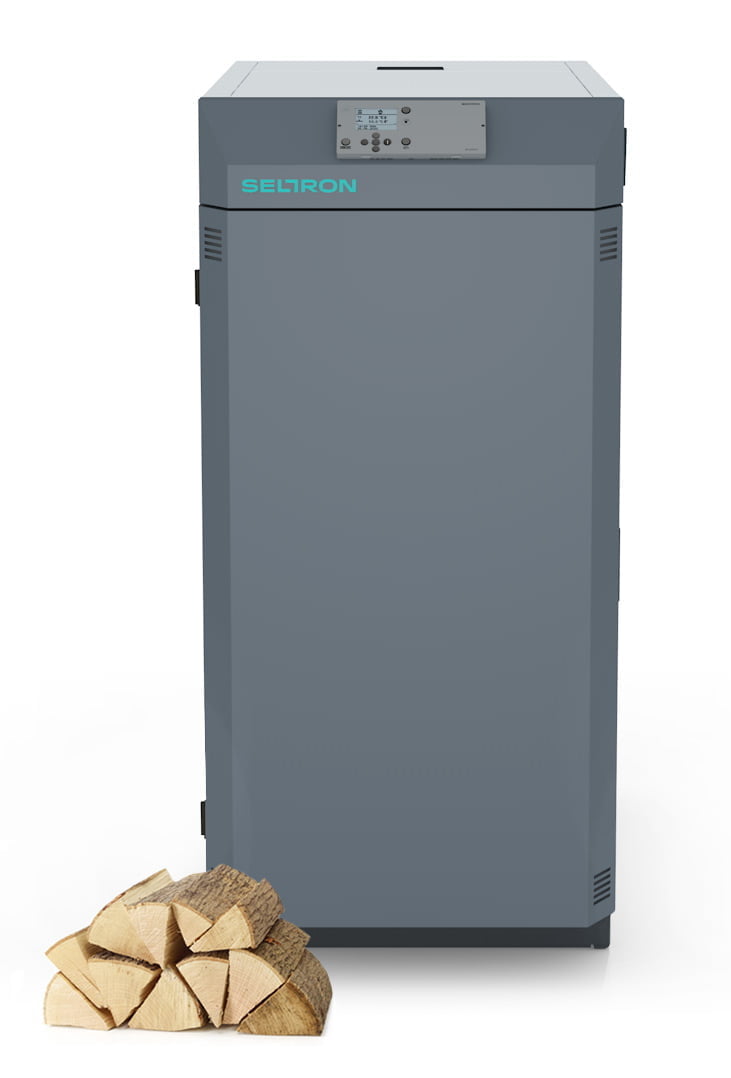

Innovative log boiler UKP SMART: Superior efficiency and reliability
- Up to 92% efficiency.
- Advanced boiler controller.
- Stainless steel panels make the boiler easy to maintain.

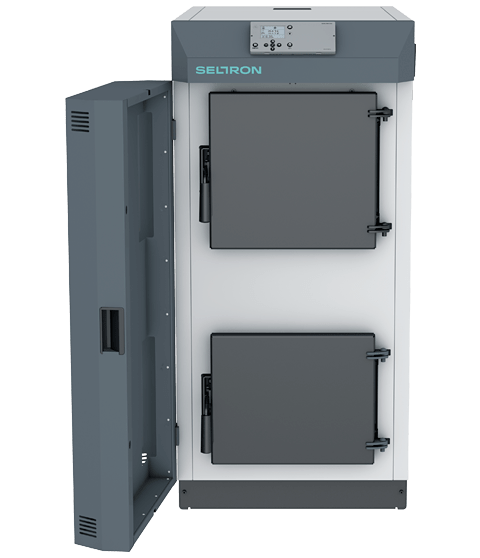

- Double doors, double insulation, more efficiency.
- Extraction of flue gases during log filling.
- Handle for easy cleaning of the heat exchanger.
- Modular annealing chamber.
Remote management option
In combination with the SeltronHome service and the weather-controlled heating controller, the UKP SMART log gasification boiler offers two additional benefits for the user
- Regular notification of events such as log loading, boiler start-up or fault detection.
- Quality remote support for boiler configuration and troubleshooting.
Technical data for the UKP SMART log boiler
| Technical data | UKP 20 SMART | UKP 25 SMART | UKP 30 SMART |
|---|---|---|---|
|
Nominal heat output |
21 kW |
25 kW |
30 kW |
|
Boiler efficiency at nominal output |
92 % |
91,9 % |
91,8 % |
|
Water quantity in the boiler |
132 l |
132 l |
125 l |
|
Volume of the combustion chamber |
105 l |
105 l |
105 l |
|
Filling chamber depth |
550 mm |
550 mm |
550 mm |
|
Maximum boiler temperature |
91,9 °C |
90 °C |
90 °C |
|
Minimum return temperature to the boiler |
55 °C |
55 °C |
55 °C |
|
Diameter of flue connection |
150 mm |
150 mm |
150 mm |
|
Height of flue connection |
1225 mm |
1225 mm |
1225 mm |
|
Required chimney draft |
0,13 mbar |
0,15 mbar |
0,15 mbar |
|
Maximum boiler pressure |
3 bar
|
3 bar
|
3 bar
|
|
Power consumption |
42 W |
45 W |
45 W |
|
Dimensions: W x H x D |
670 x 1300 x 1290 mm |
670 x 1300 x 1290 mm |
670 x 1300 x 1290 mm |
|
Boiler mass |
605 kg |
605 kg |
605 kg |
DIMENSIONS OF THE UKP SMART BOILER
